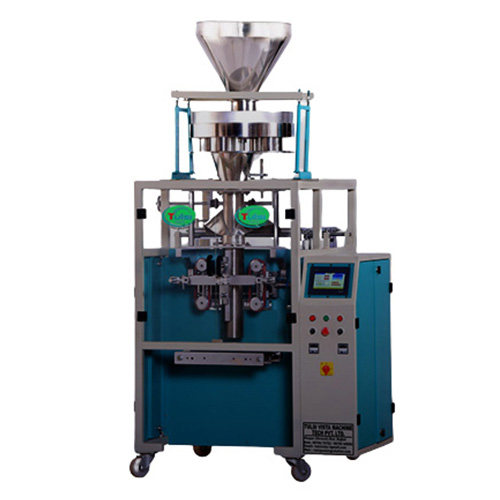

A Sugar Packing Machine is a type of automatic filling machine used for the precise and efficient filling of liquids, pastes, creams, and other semi-liquid products. The machine operates using compressed air, and is equipped with a cup dispensing system, which dispenses a precisely measured volume of product into containers. The cups are filled with product and then dispensed into containers, which can be sealed or capped to protect the contents. The use of a pneumatic system provides a number of benefits, including improved accuracy and consistency of fill weights, as well as reduced contamination risk compared to mechanical systems. Additionally, the pneumatic system can provide smoother and faster operation, making it well-suited for high-speed packaging lines. Full Pneumatic Cup Filler Machines can be used in a variety of industries, including food, pharmaceutical, and cosmetic, and can be custom designed to meet specific packaging needs.
| Machine Name | Sugar Packing Machine |
|---|---|
| Filling System | Volumetric Cup Filler |
| Filling Capacity | (20gm to 100gm) (100gm to 500gm)(500gm to 1000gm) (Exchange Cup Assembly) |
| Filling Accuracy | +/- 1 to 2% (Depend upon nature of Product) |
| Type of Sealing | Center Seal |
| Sealing System | By Air Cylinder / Servo |
| Bag Pulling System | Ac Drive / Servo Drive |
| Film Roll Size | 100 to 500mm-Width / 80 to 300mm-Length |
| Film Material | Laminated Film in Roll Supported Film E.g.Aluminum Foil, PE, PP |
| Speed | 20 TO 45 Bag/min. (Varies with the nature of Product & Filling Range) |
| Machine Controlled | PLC |
| Poweer Supply | 220V AC Single Phase |
| Machine Size | 1700 x 1200 x 2500mm (LXWXH) |
| Product Packet | All types of Pulses, Grains & Dal Etc.Detergent Powder, Salt, Sugar, Tea, Rawa,Suji, Etc. |
